CC1
Cleaning robots offer the advantages of contactless and intelligent cleaning, especially when compared to manual services, presenting a rare strategic development opportunity in the commercial cleaning robot industry. Pudu's CC1 cleaning robot is designed to help the traditional cleaning industry meet the challenges of smart transformation.
CC1 is designed for a variety of cleaning scenarios and is capable of multiple functions, including scrubbing, sweeping, vacuuming, mopping, automatic water refilling and debris discharge, autonomous driving, auto elevator taking, e-gate and auto-gate passage, auto access control, and multi-floor operations. CC1 is equipped with a built-in roller brush, squeegee and removable dust vacuum that allows it to adapt to various floor types in buildings and residences, including hard floors and soft carpet.
PUDU SLAM Navigation Solution
PUDU SLAM is a new SLAM solution based on Lidar, Camera, RGBD, IMU, Ultrasonic Radar, Encoder multi-sensor fusion. This solution can ensure that the robot can perform tasks more efficiently in a mixed environment.
Automatic Charging, Filling and Drainage Stations

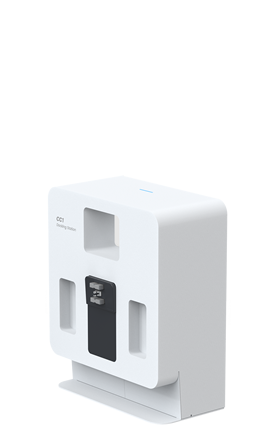

Charging Station
Supports auto charging and is primarily used for sweeping and vacuuming.

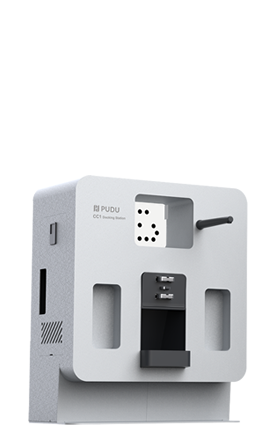

Docking Station
Supports automatic charging, water supply and drainage, and detergent addition. Requires a drain and water source.

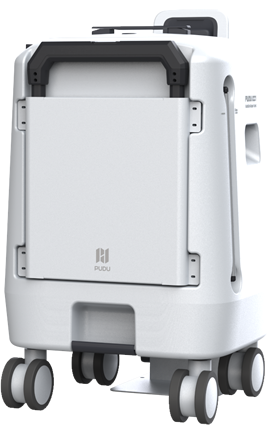

Mobile Water Station
Pair the mobile station with the docking station and there is no need for plumbing modifications. Supports automatic charging, water supply and drainage, and detergent addition
CC1 Quick Specs
| Recovery Tank Volume: 3.96 gal |
| Fresh Tank Volume: 3.96 gal |
| Cleaning Mode: Scrubbing, Sweeping, Vacuuming, Dust Mopping |
| Cleaning Work Noise: <70dB |
| Operating Speed: .66 f/s - 3.94 f/s |
| Maximum Battery Life: 9h |
| Run-time: 4 h - 8 h |
| Battery Capacity: 50 Ah |
| Charging Time: <4 h |
| Operating Mode: Auto and Manual |
| Robot Weight: 152.11 lbs |
| Screen Size: 10.1 inch LCD screen |
| Robot Diminsions: 26.1" x 22.36" x 26.85" |
| Enclosure Material: PC + ABS |
| Navigation Method: Integrated lidar and visual SLAM positioning |
| Min. Path Clearance: 27.56" |
| Max. Sumountable Height: .78" |
| Max. Climbing Angle: 8° |
| Max. Surmountable Gap: 1.38" |
| Cleaning Width (with side brush): 19.69" |
| Operating System: Android |
| Communication: 4g, Lora, WIFI, Bluetooth supported |
| Mobile App: Supported |
| Auto Charging: Supported (in conjuction with charging pile) |
| Operational Features: Charging Pile, Workstation |
| Working Enviroment Temperature: 34°F to 104°F; RH ≤ 85% |
| Storage Enviroment Temperature: -104°F to 149°F; RH ≤ 85% |
| Working Altitude: less than 1.2 miles |
| Application Scope: Terrazzo, marble, tile, exposy resin, sandstone, artificial stone, short-pile carpets, etc. |
| IP Rating: IPX4 |
| Operating Voltage: DC 23V - 29.2V |
| Power Input: AC100V - 240V, 50/60Hz |
| Power Output: 29.2V, 11A |
